For Wenglor Laser Distance Sensor Time of Flight Replacement | 100 Measuring Range

Name: For Wenglor Laser Distance Sensor Time of Flight Replacement | 100 Measuring Range
Brand: DADISICK
SKU: 18495349
Rating: 4.75 (10 reviews)

Categories	Wenglor Laser Distance Sensors Replacement
Brand	DADISICK
Model	Wenglor \| X1TA101MHT88, X1TA101MHV80
Series:	LT7 Series
Measuring range:	0.5 m to 250 m
Light spot size:	Ø 500 mm
Measurement accuracy:	—
Resolution:	± 2 mm
Update Time	Apr 19,2025

Detail Information

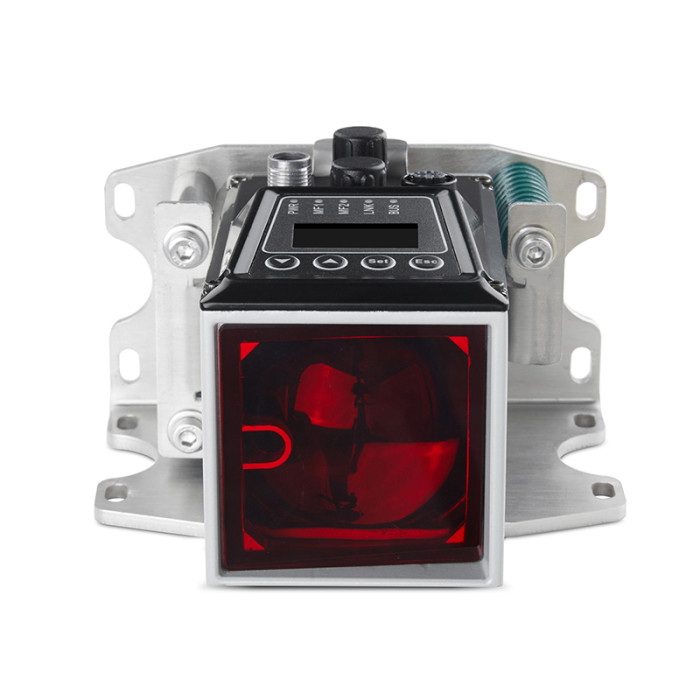

For Wenglor Laser Distance Sensor Time of Flight Replacement | 100 Measuring Range

Brand	From network	DADISICK
Models	X1TA101MHT88	DS-120
	X1TA101MHV80
Measuring range	100 m	MAX. 120 m
Light spot size	＜ 200 mm	150 mm (@120 m)
Measurement accuracy	—	±2 mm
Repeatability	—	1 mm
Measurement frequency	—	1000 Hz
Resolution	4...20 mm	0.1 mm
Max. movement speed	—	15 m/s
Supply voltage	18 ... 30 V DC	DC 9 V ... 30 V
Current consumption	< 100 mA	0.2 A at 12 V DC
Laser class	Class 1 (EN 60825-1)	Class 2
Light source	660 nm, Laser (red)	Red laser (visible light)
Interface	—	SSI, Ethernet 100BASE-TX (Data Transmission)
Connection	Connector: 1 x M12; coding: A	M12/4-pin/D-coded female straight (For Network); M12/8-pin/A-coded male straight (For Power/SSI)
Dimensions	30 x 55 x 81 mm	123 × 69.5 × 90 mm
IP rating	IP68	IP65
Operating temperature	-25 ... 60 °C	-10℃~+55℃
We are able to reproduce the specific connection configuration of each brand with high level of accuracy.

Product Model Display Instructions

The brands and specifications displayed on this page are for reference and product selection purposes only. The Laser distance sensors we provide are manufactured by DADISICK and are not official products of Wenglor or any other brand mentioned. DADISICK offers compatible alternatives to official brand products. We do not own the rights to these brands. For genuine Wenglor products, please contact the brand's authorized representative directly.

Product Recommendations

DS Series Long-Distance Laser Rangefinder

Model:

DS-80

DS-120

DS-200

Datasheet download

FAQ

1. What is the measurement range of the DS Series laser distance sensor?

The measurement range is 0.2 to 200 meters, though the exact range may vary depending on the

type of reﬂector and surface characteristics.

2. Does the DS Series support dynamic measurements?

Yes, the DS Series supports dynamic measurements, allowing real-time positioning of high-speed moving objects with a measurement frequency of up to 1000 Hz.

3. Does the product feature environmental compensation?

Yes, the DS Series is equipped with an environmental light interference compensation algorithm, ensuring high-accuracy measurements under complex lighting conditions.

4. What are the size and shape of the laser beam?

The beam starts as a small-diameter dot and gradually spreads over distance. The exact dimensions depend on the measurement range.

5. Does the DS Series support multi-target measurement?

No, this series is designed for single-point measurement. Multi-target measurement can be achieved by using multiple devices.
