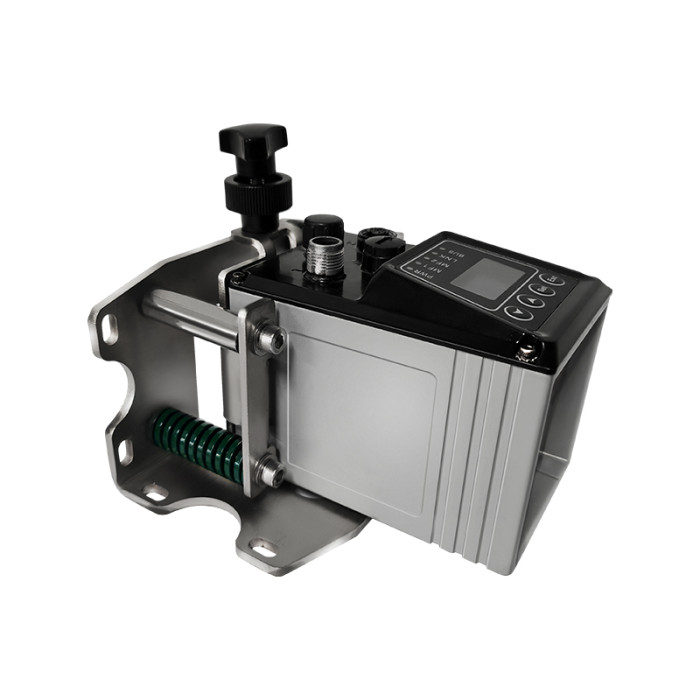

For IFM O1D Series Photoelectric Distance Sensor Replacement | 75 m Measuring Range

Name: For IFM O1D Series Photoelectric Distance Sensor Replacement | 75 m Measuring Range
Brand: DADISICK
SKU: 18495232
Rating: 4.75 (10 reviews)

Categories	IFM Photoelectric Distance Sensor Replacement
Brand	DADISICK
Model	O1D Series \| O1D106
Series:	O1D Series
Measuring range:	1...75 m
Light spot size:	150 mm
Measurement accuracy:	± 63 mm@33 Hz; ± 35 mm@1 Hz
Resolution:	—
Update Time	Jan 10,2025

Detail Information

For IFM O1D Series Photoelectric Distance Sensor Replacement | 75 m Measuring Range

Brand	From network	DADISICK
Models	O1D106	DS-80
Measuring range	1...75 m; (Reflector E21159)	MAX. 80 m
Light spot size	150 mm	100 mm (@80 m)
Measurement accuracy	± 63 mm@33 Hz; ± 35 mm@1 Hz	±2 mm
Repeatability	± 43 mm@33 Hz; ± 15 mm@1 Hz	1 mm
Measurement frequency	1...33 Hz	1000 Hz
Resolution	—	0.1 mm
Max. movement speed	—	15 m/s
Supply voltage	18...30 V DC	DC 9 V ... 30 V
Current consumption	< 150 mA	0.2 A at 12 V DC
Laser class	class 2	Class 2
Light source	650 nm, Laser	Red laser (visible light)
Interface	IO-Link communication interface	SSI, Ethernet 100BASE-TX (Data Transmission)
Connection	Connector: 1 x M12; coding: A	M12/4-pin/D-coded female straight (For Network); M12/8-pin/A-coded male straight (For Power/SSI)
Dimensions	59 x 42 x 52 mm	123 × 69.5 × 90 mm
IP rating	IP 67	IP65
Operating temperature	-10...60°C	-10℃~+55℃
We are able to reproduce the specific connection configuration of each brand with high level of accuracy.

Product Model Display Instructions

The brands and specifications displayed on this page are for reference and product selection purposes only. The Photoelectric distance sensors we provide are manufactured by DADISICK and are not official products of IFM or any other brand mentioned. DADISICK offers compatible alternatives to official brand products. We do not own the rights to these brands. For genuine IFM products, please contact the brand's authorized representative directly.

Product Recommendations

DS Series Long-Distance Laser Rangefinder

Model:

DS-80

DS-120

DS-200

Datasheet download

FAQ

1. Is a sample device available for testing?

Yes, customers can request a sample device for testing to conﬁrm whether it meets their speciﬁc needs.

2. What should I do in case of a fault?

Refer to the troubleshooting guide in the user manual. If the issue persists, please contact the DADISICK technical support team.
