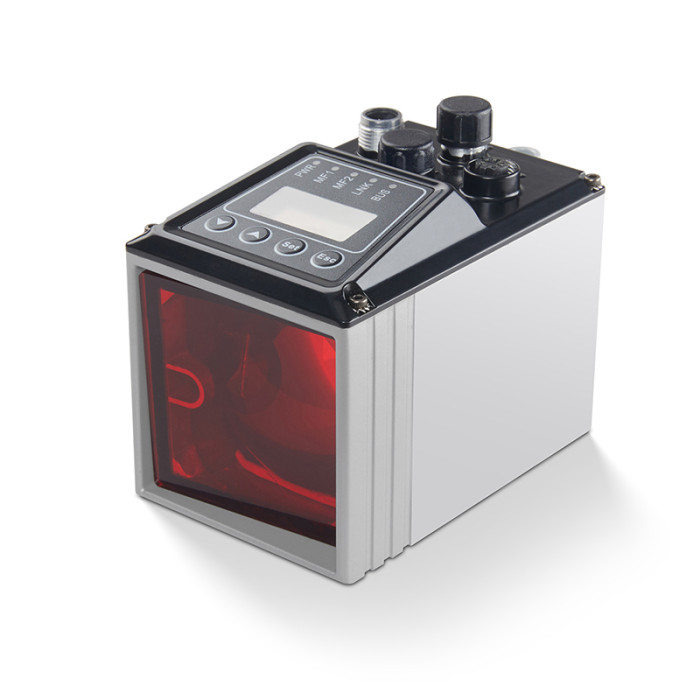

For Acuity Laser AS2100 Accurate Distance Sensor Replacement | 500 m Measuring Range with a Reflective Foil

Name: For Acuity Laser AS2100 Accurate Distance Sensor Replacement | 500 m Measuring Range with a Reflective Foil
Brand: DADISICK
SKU: 18495198
Rating: 4.75 (10 reviews)

Categories	Acuity Laser Long Range Sensors Replacement
Brand	DADISICK
Model	AS2100 Series \| AS2100
Series:	AS2100 Series
Measuring range:	0.5 to 500 m
Light spot size:	7 x 3 mm; 28 x 13 mm; 55 x 30 mm
Measurement accuracy:	± 1 mm
Resolution:	0.1 mm
Update Time	Jan 10,2025

Detail Information

For Acuity Laser AS2100 Accurate Distance Sensor Replacement | 500 m Measuring Range with a Reflective Foil

Brand	From network	DADISICK
Models	AS2100	DS-200
Measuring range	0.5 to 500 m Measuring Range with a Reflective Foil	MAX. 200 m
Light spot size	Laser spot diameter @ 10, 50, 100 m 7 x 3 mm; 28 x 13 mm; 55 x 30 mm	245 mm (@200 m)
Measurement accuracy	± 1 mm	±2 mm
Repeatability	0.3 mm	1 mm
Measurement frequency	250 Hz	1000 Hz
Resolution	0.1 mm	0.1 mm
Max. movement speed	—	15 m/s
Supply voltage	12 - 30 Volts DC	DC 9 V ... 30 V
Current consumption	Max. Current: 0.2A	0.2 A at 12 V DC
Laser class	Class 2, Complies with 21 CFR 1040.10 and with Laser Notice 50, IEC/EN60825-1:2014	Class 2
Light source	650 nm, 1 mW visible RED	Red laser (visible light)
Interface	Serial: RS232, RS422, RS485, (USB connection only for configuration), ethernet option available; Analog output: 4-20 mA/0-20mA software configurable	SSI, Ethernet 100BASE-TX (Data Transmission)
Connection	Serial cable with DB9 connector (optional serial to USB cable), AC power supply with 110 VAC or 240 VAC.	M12/4-pin/D-coded female straight (For Network); M12/8-pin/A-coded male straight (For Power/SSI)
Dimensions	—	123 × 69.5 × 90 mm
IP rating	IP65	IP65
Operating temperature	-10 to 50 °C	-10℃~+55℃
We are able to reproduce the specific connection configuration of each brand with high level of accuracy.

Product Model Display Instructions

The brands and specifications displayed on this page are for reference and product selection purposes only. The Laser Distance Sensors we provide are manufactured by DADISICK and are not official products of Acuity Laser or any other brand mentioned. DADISICK offers compatible alternatives to official brand products. We do not own the rights to these brands. For genuine Acuity Laser products, please contact the brand's authorized representative directly.

Product Recommendations

DS Series Long-Distance Laser Rangefinder

Model:

DS-80

DS-120

DS-200

Datasheet download

FAQ

1. Does the device support multi-angle installation?

Yes, but it is recommended to align the laser beam perpendicularly to the reﬂector to achieve optimal measurement accuracy.

2. Are special tools or accessories required for installation?

Installation does not require special tools. A standard mounting bracket is included, but higher- precision adjustment devices can be purchased for speciﬁc scenarios.

3. What interface protocols does the DS Series support?

The DS Series supports SSI, Ethernet 100BASE-TX, and TCP/IP protocols, making it easy to integrate with industrial control systems.

4. Does it support remote debugging and parameter conﬁguration?

Yes, remote debugging and parameter conﬁguration can be performed via the SimiView software, improving installation and maintenance eﬃciency.

5. How does the device perform in vibrating environments?

The DS Series features an anti-vibration design and can operate reliably in high-vibration industrial environments. However, prolonged exposure to excessive mechanical shock should be avoided.
