For HOKUYO PGL Series Laser Distance Sensor Replacement | 180 m Measuring Range on Orange (Reflective) Foil

Name: For HOKUYO PGL Series Laser Distance Sensor Replacement | 180 m Measuring Range on Orange (Reflective) Foil
Brand: DADISICK
SKU: 18495131
Rating: 4.75 (10 reviews)

Categories	HOKUYO Logistics Automation Sensors Replacement
Brand	DADISICK
Model	PGL Series \| PGL-180W3
Series:	PGL Series
Measuring range:	0.5～180 m
Light spot size:	@ 5 m：4 mm / 2 mm; @ 10 m ：7 mm / 3 mm ...
Measurement accuracy:	±3.0 mm@ 2σ(95.4% confidence level) ...
Resolution:	0.1 mm
Update Time	Jan 10,2025

Detail Information

For HOKUYO PGL Series Laser Distance Sensor Replacement | 180 m Measuring Range on Orange (Reflective) Foil

Brand	From network	DADISICK
Models	PGL-180W3	DS-200
Measuring range	0.5～180 m (on Orange (Reflective) Foil)	MAX. 200 m
Light spot size	@ 5 m：4 mm / 2 mm @ 10 m ：7 mm / 3 mm @ 30 m ：17 mm / 9 mm @ 50 m ：28 mm / 13 mm @ 100 m ：55 mm / 30 mm	245 mm (@200 m)
Measurement accuracy	±3.0 mm@ 2σ(95.4% confidence level) ±1.5 mm@ 1σ(68.3% confidence level)	±2 mm
Repeatability	±0.7 mm@ 2σ(95.4% confidence level) ±0.35 mm @ 1σ(68.3% confidence level)	1 mm
Measurement frequency	100 Hz	1000 Hz
Resolution	0.1 mm	0.1 mm
Max. movement speed	Typical time for a measurement: 0.05～4 s (Single measurement) 0.004～4 s (Tracking)	15 m/s
Supply voltage	12～30 VDC	DC 9 V ... 30 V
Current consumption	0.5 A@ 24 VDC 0.8 A@ 12 VDC	0.2 A at 12 V DC
Laser class	IEC/EN 60825-1:2014; Class 2	Class 2
Light source	Laser diode 620-690 nm (red, typical 650 nm)	Red laser (visible light)
Interface	RS-232, RS-422 / RS-485, SSI, USB interface	SSI, Ethernet 100BASE-TX (Data Transmission)
Connection	M16 x 1.5 mm	M12/4-pin/D-coded female straight (For Network); M12/8-pin/A-coded male straight (For Power/SSI)
Dimensions	140×78×48 mm	123 × 69.5 × 90 mm
IP rating	IP65	IP65
Operating temperature	-10～+50°C	-10℃~+55℃
We are able to reproduce the specific connection configuration of each brand with high level of accuracy.

Product Model Display Instructions

The brands and specifications displayed on this page are for reference and product selection purposes only. The Laser Distance Sensors we provide are manufactured by DADISICK and are not official products of HOKUYO or any other brand mentioned. DADISICK offers compatible alternatives to official brand products. We do not own the rights to these brands. For genuine HOKUYO products, please contact the brand's authorized representative directly.

Product Recommendations

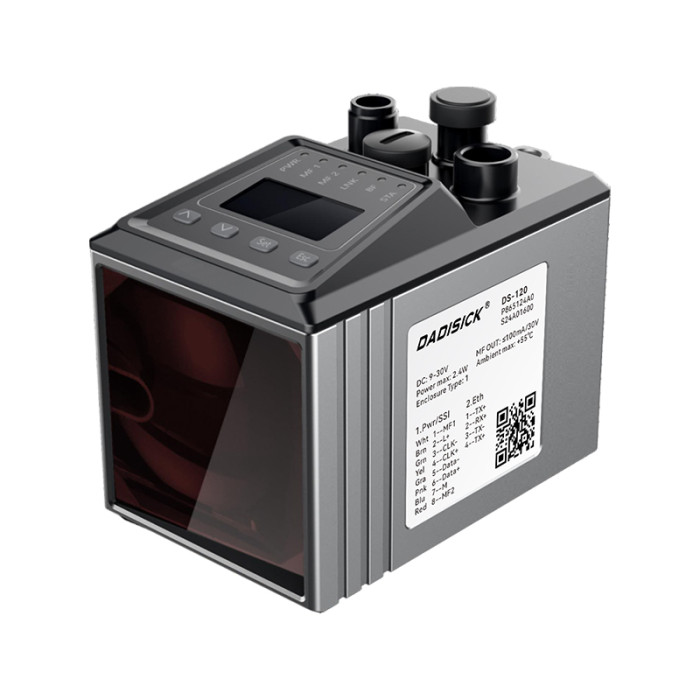

DS Series Long-Distance Laser Rangefinder

Model:

DS-80

DS-120

DS-200

Datasheet download

FAQ

1. What is the measurement range of the DS Series laser distance sensor?

The measurement range is 0.2 to 200 meters, though the exact range may vary depending on the

type of reﬂector and surface characteristics.

2. Does the DS Series support dynamic measurements?

Yes, the DS Series supports dynamic measurements, allowing real-time positioning of high-speed moving objects with a measurement frequency of up to 1000 Hz.

3. Does the product feature environmental compensation?

Yes, the DS Series is equipped with an environmental light interference compensation algorithm, ensuring high-accuracy measurements under complex lighting conditions.

4. What are the size and shape of the laser beam?

The beam starts as a small-diameter dot and gradually spreads over distance. The exact dimensions depend on the measurement range.

5. Does the DS Series support multi-target measurement?

No, this series is designed for single-point measurement. Multi-target measurement can be achieved by using multiple devices.
