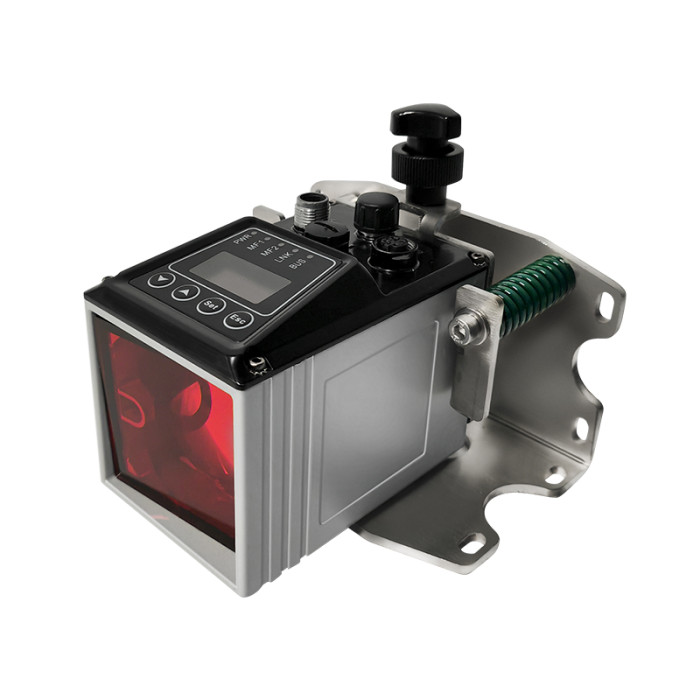

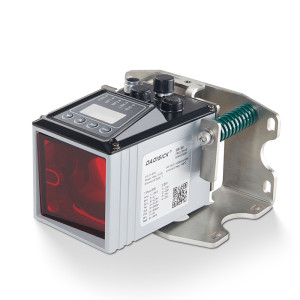

For Leuze AMS 300i Optical Distance Sensor Replacement | 40 m Measuring Range

Name: For Leuze AMS 300i Optical Distance Sensor Replacement | 40 m Measuring Range
Brand: DADISICK
SKU: 18495086
Rating: 4.75 (10 reviews)

Categories	Leuze Optical Distance Sensor Replacement
Brand	DADISICK
Model	AMS 300i Series \| AMS 307i 40, AMS 348i 40 H SSI, AMS 348i 40 SSI, AMS 384i 40 H, AMS 384i 40, AMS 358i 40 H, AMS 358i 40, AMS 355i 40 H, AMS 355i 40, AMS 348i 40 H, AMS 348i 40, AMS 338i 40 H, AMS 338i 40, AMS 335i 40 H, AMS 335i 40, AMS 308i 40 H, AMS 308i 40, AMS 304i 40 H, AMS 304i 40, AMS 301i 40 H, AMS 301i 40, AMS 300i 40 H, AMS 300i 40
Series:	AMS 300i Series
Measuring range:	0.2 - 40 m
Light spot size:	40 mm
Measurement accuracy:	2 mm
Resolution:	0.001 ... 10 mm
Update Time	Jan 9,2025

Detail Information

For Leuze AMS 300i Optical Distance Sensor Replacement | 40 m Measuring Range

Brand	From network		DADISICK
Models	AMS 307i 40	AMS 338i 40 H	DS-80
	AMS 348i 40 H SSI	AMS 338i 40
	AMS 348i 40 SSI	AMS 335i 40 H
	AMS 384i 40 H	AMS 335i 40
	AMS 384i 40	AMS 308i 40 H
	AMS 358i 40 H	AMS 308i 40
	AMS 358i 40	AMS 304i 40 H
	AMS 355i 40 H	AMS 304i 40
	AMS 355i 40	AMS 301i 40 H
	AMS 348i 40 H	AMS 301i 40
	AMS 348i 40	AMS 300i 40 H
	—	AMS 300i 40
Measuring range	0.2 - 40 m		MAX. 80 m
Light spot size	40 mm		100 mm (@80 m)
Measurement accuracy	2 mm		±2 mm
Repeatability	1.5 mm (3 sigma)		1 mm
Measurement frequency	—		1000 Hz
Resolution	0.001 ... 10 mm		0.1 mm
Max. movement speed	10 m/s		15 m/s
Supply voltage	18 ... 30 V, DC		DC 9 V ... 30 V
Current consumption	250 mA without heating / 500 mA with heating		0.2 A at 12 V DC
Laser class	Laser class 2 acc. to EN 60825-1; CDRH		Class 2
Light source	Laser diode, red light, wavelength 650 – 690 nm		Red laser (visible light)
Interface	CANopen DeviceNet EtherCAT Ethernet EtherNet IP Interbus-S PROFIBUS DP, SSI PROFINET PROFINET, SSI RS 232, RS 422 RS 485 SSI		SSI, Ethernet 100BASE-TX (Data Transmission)
Connection	M12		M12/4-pin/D-coded female straight (For Network); M12/8-pin/A-coded male straight (For Power/SSI)
Dimensions	84 mm x 166.5 mm x 159 mm		123 × 69.5 × 90 mm
IP rating	IP 65		IP65
Operating temperature	-5 – 50 °C without heating / -30 – 50 °C with heating		-10℃~+55℃
We are able to reproduce the specific connection configuration of each brand with high level of accuracy.

Product Model Display Instructions

The brands and specifications displayed on this page are for reference and product selection purposes only. The Optical Distance Sensors we provide are manufactured by DADISICK and are not official products of Leuze or any other brand mentioned. DADISICK offers compatible alternatives to official brand products. We do not own the rights to these brands. For genuine Leuze products, please contact the brand's authorized representative directly.

Product Recommendations

DS Series Long-Distance Laser Rangefinder

Model:

DS-80

DS-120

DS-200

Datasheet download

FAQ

1. How does the DS Series communicate?

Communication is achieved using the SimiView software, which operates on the TCP/IP protocol.

2. Should network security be a concern?

Yes, users must take measures to prevent malicious network interference to ensure the safe operation of the device.
