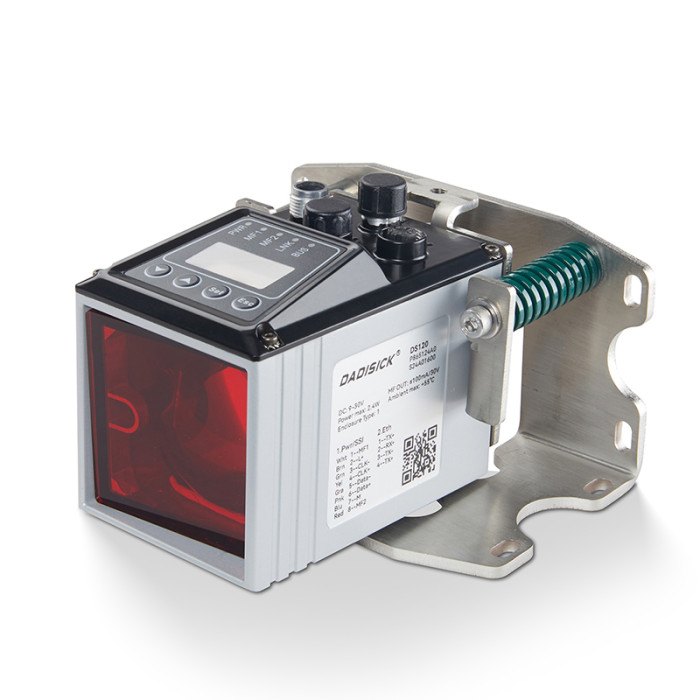

For Leuze AMS 100i Optical Positioning Sensor Replacement | 120 m Measuring Range

Name: For Leuze AMS 100i Optical Positioning Sensor Replacement | 120 m Measuring Range
Brand: DADISICK
SKU: 18495005
Rating: 4.75 (10 reviews)

Categories	Leuze Optical Distance Sensor Replacement
Brand	DADISICK
Model	AMS 100i Series \| vAMS 108i 120 H, AMS 108i 120, AMS 108i 120 BTA H, AMS 108i 120 BTA, AMS 107i 120 H, AMS 107i 120, AMS 107i 120 BTA H, AMS 107i 120 BTA
Series:	AMS 100i Series
Measuring range:	0.1 - 120 m
Light spot size:	100 mm
Measurement accuracy:	± 2 mm
Resolution:	0.001 ... 10 mm
Update Time	Apr 17,2025

Detail Information

For Leuze AMS 100i Optical Positioning Sensor Replacement | 120 m Measuring Range

Brand	From network		DADISICK
Models	AMS 108i 120 H	AMS 107i 120 H	DS-120
	AMS 108i 120	AMS 107i 120
	AMS 108i 120 BTA H	AMS 107i 120 BTA H
	AMS 108i 120 BTA	AMS 107i 120 BTA
Measuring range	0.1 - 120 m		MAX. 120 m
Light spot size	100 mm		150 mm (@120 m)
Measurement accuracy	± 2 mm		±2 mm
Repeatability	0.6 mm (3 sigma)		1 mm
Measurement frequency	—		1000 Hz
Resolution	0.001 ... 10 mm		0.1 mm
Max. movement speed	10 m/s		15 m/s
Supply voltage	18 ... 30 V, DC		DC 9 V ... 30 V
Current consumption	250 mA without heating / 500 mA with heating		0.2 A at 12 V DC
Laser class	Laser class 2 acc. to EN 60825-1; CDRH		Class 2
Light source	Laser diode, red light, wavelength 655 nm		Red laser (visible light)
Interface	EtherNet TCP/IP	SSI	SSI, Ethernet 100BASE-TX (Data Transmission)
Connection	M12		M12/4-pin/D-coded female straight (For Network); M12/8-pin/A-coded male straight (For Power/SSI)
Dimensions	70 mm x 139 mm x 118 mm		123 × 69.5 × 90 mm
IP rating	IP 65		IP65
Operating temperature	-5 – 60 °C without heating / -30 – 60 °C with heating		-10℃~+55℃
We are able to reproduce the specific connection configuration of each brand with high level of accuracy.

Product Model Display Instructions

The brands and specifications displayed on this page are for reference and product selection purposes only. The Optical Positioning Sensors we provide are manufactured by DADISICK and are not official products of Leuze or any other brand mentioned. DADISICK offers compatible alternatives to official brand products. We do not own the rights to these brands. For genuine Leuze products, please contact the brand's authorized representative directly.

Product Recommendations

DS Series Long-Distance Laser Rangefinder

Model:

DS-80

DS-120

DS-200

Datasheet download

FAQ

1. How suitable is the DS Series for harsh environments?

The DS Series features an IP65 protection rating, making it suitable for dusty and humid industrial environments. However, it is not designed for use in corrosive or explosive conditions.

2. Can the device be modified?

No, any electrical or mechanical modiﬁcation is prohibited. Unauthorized software should also not be used with the device.

3. What qualiﬁcations should operators possess?

- Mechanical installation personnel should have knowledge of mechanical technology and safety.

- Electrical installation personnel should have expertise in electrical technology, safety, and equipment operation experience.

- Commissioning personnel should be familiar with operating systems, data transmission, and interface conﬁguration basics.

4. Is laser radiation harmful to humans?

Short-term exposure (≤0.25 seconds) is not harmful, but prolonged direct exposure may cause retinal damage. Operators should wear protective eyewear and avoid laser reﬂections.

5. What precautions should be taken for electrical operation?

- Operations must be carried out by professional electrical personnel. o Electrical connections should be made while the power is oﬀ.

- The product must be connected to a power source that meets the requirements speciﬁed in the user manual.
