For Banner LM Series 40 to 80 mm and 50 to 150 mm Detection Range Analog Output Laser Distance Sensor Replacement

Name: For Banner LM Series 40 to 80 mm and 50 to 150 mm Detection Range Analog Output Laser Distance Sensor Replacement
Brand: DADISICK
SKU: 18451107
Rating: 4.75 (10 reviews)

Categories	BANNER Laser Distance Sensors Replacement
Brand	DADISICK
Model	LM Series \| LM80KUQP, LM80IRSDQP-X232, LM150IRSDQP-X232, LM150KUQP, LM80KIQP, LM150KIQP
Series:	LM Series
Detection range:	40-80 mm and 50-150 mm
Repeatability:	±0.001 mm
Sensing beam:	Red Laser 655nm
Output:	Analog
Material	Stainless steel
Connector:	M12
Update Time	Dec 5,2024

Contact Now

Favorites

Detail Information

Technical Data

Dimensions and Wiring

Downloads

For Banner LM Series 40 to 80 mm and 50 to 150 mm Detection Range Analog Output Laser Distance Sensor Replacement Parameter

Brand		From network	DADISICK
Models		LM80KUQP	GFL-Z100NM
		LM80IRSDQP-X232
		LM80KIQP
		LM150IRSDQP-X232
		LM150KUQP
		LM150KIQP
Technical parameters	Detection range	40-80 mm	100 mm
	Repeatability	±0.001 mm	70μm
	Sensing beam	Red Laser 655nm	Red semiconductor laser Class 2 Wavelength :655nm
	Output	Analog: 0-10 V, Analog: 4-20 mA	NPN/Analog output
	Power source	10-30 V DC	12~24V DC±10%
	Material	Stainless steel	Body shell: aluminum casting front cover plate: propylene base
	Connector	M12	With 0.15mm 5-core composite cable 2m
	Enclosure rating	IP67	IP60
	Ambient operating temperature	-10 to 55 °C	-10℃ to +40℃, no frozen
We are able to reproduce the specific connection configuration of each brand with high level of accuracy.

Product model display instructions

The brands and specifications shown on this page are for product selection only. Our safety light curtain is a safety part made by DADISICK, not official brand Banner's products. DAIDSICK offer replacement for official brand products. We are not the owner of the brands. If you need to buy official brand products, please contact the brand official representative.

Product recommendations

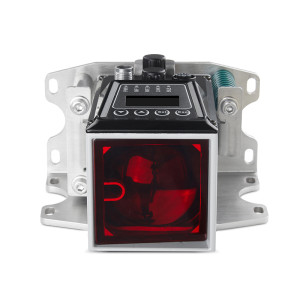

DADISICK laser position sensor GFL-Z series

Laser Displacement Measurement GFL-Z series

GFL-Z100NM

Datasheet download

FAQ

1. How do you ensure the quality and reliability of your laser displacement sensors?

Quality is our priority. We employ rigorous quality control measures throughout the manufacturing process and our laser displacement sensors undergo extensive testing to meet industry standards and deliver consistent performance.

2. Can your laser displacement sensors be seamlessly integrated into existing systems?

Absolutely! Our laser displacement sensors are designed for easy integration with various access control systems. We provide detailed documentation and technical support to ensure smooth installation and operation.
